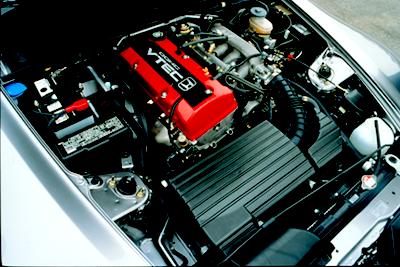

Engine
Type 16-Valve DOHC VTEC™ Inline-4
Bore & Stroke (mm/in.) 87.0
x 84.0/3.42 x 3.30
Displacement (cc/cu. in.) 1997/121.9
Horsepower (SAE net @ rpm) 240 @
8300
Torque (lb.-ft. @ rpm) 153 @ 7500
Block Material Aluminum Alloy w/Fiber-Reinforced
(FRM) Cylinder Walls
Cylinder-Head Material Aluminum
Alloy
Valve Train 16-Valve DOHC VTEC™
Lightweight, MIM (Metal-Injection
Molded), Sintered-Steel Rocker Arms
Low-Friction Roller-Bearing Cam-Followers
Compact, 2-Stage Cam-Drive with
Silent Chain, Scissors Gears and Fully Automatic Tensioner
Fuel Induction System Multi-Point
Programmed Fuel Injection (PGM-FI)
Ignition System Electronic
Emission Control Low Back-Pressure,
Metal-Honeycomb Catalytic Converter
Electric-Motor-Driven, Multi-Port
Secondary Air-Assist Injection System
Recommended Fuel Premium Unleaded
Compression Ratio 11.0:1
P O W E R T R A I N
Drive System Type Front Engine/Rear-Wheel
Drive
Manual Transmission 6-Speed w/Torque-Sensing
Limited-Slip Differential
Transmission Gear Ratios:
1st gear 3.133
2nd 2.045
3rd 1.481
4th 1.161
5th 0.971
6th 0.811
Reverse 2.800
Primary Gear Reduction 1.160
Final Drive Ratio 4.100
B O D Y / S U S P E N S I O N /
C H A S S I S
High X-Bone Frame w/Center Tunnel
•
Front Suspension Independent In-Wheel
Double Wishbone & Coil Springs w/Stabilizer Bar (28.2 mm)
Rear Suspension Independent In-Wheel
Double Wishbone & Coil Springs w/Stabilizer Bar (27.2 mm)
Shock Absorbers Gas-Pressurized,
Mono-Tube
Steering Type Coaxial Electric Power
Rack & Pinion
Steering Wheel Turns (lock-to-lock)
2.4
Steering Ratio 13.8
Turning Diameter (ft., at wheel center)
35.4
Front Wheels 16" x 6.5"
Aluminum Alloy
Rear Wheels 16" x 7.5"
Aluminum Alloy
Tires Bridgestone Potenza S-02
Front Tires P205/55 VR16
Rear Tires P225/50 VR16
Ventilated Front Disc Brakes (diameter)
11.8 in.
Rear Disc Brakes (diameter) 11.1
in.
Parking Brake Rear Mechanical
E X T E R I O R D I M E N S
I O N S

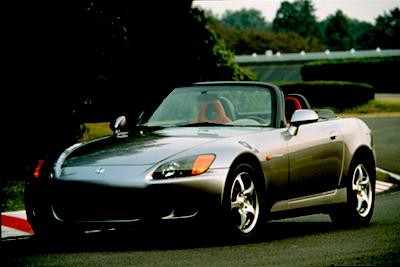

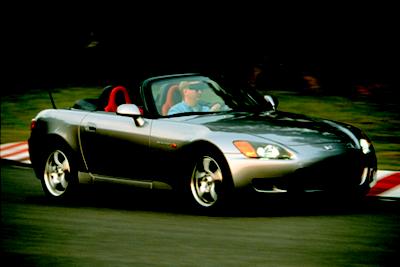

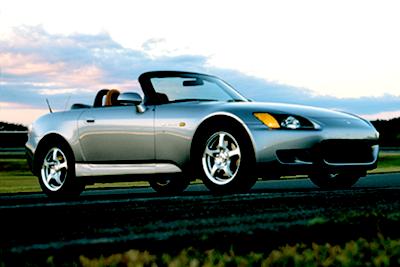

Vehicle Type Front-Engine, Rear-Wheel-Drive,
2-Passenger, 2-Door Roadster
Wheelbase (in.) 94.5
Track, Front (in.) 57.9
Track, Rear (in.) 59.4
Length (in.) 162.2
Width (in.) 68.9
Height (in.) 50.6
Minimum Ground Clearance
Non-Load (in.) 5.1
Full-Load (in.) 4.2
Curb Weight (lb.) 2800
Weight Distribution (%, Front/Rear)
50/50
I N T E R I O R &
T R U N K D I M E N S I O
N S
Headroom (in.) 34.6
Legroom (in.) 44.3
Hiproom (in.) 50.2
Shoulder Room (in.) 49.8
EPA Passenger Volume (cu. ft.) 48.4
EPA Cargo Volume (cu. ft.) 5.0
E N G I N E E R I N G F E A
T U R E S 2.0 Liter, 240-hp, 16-valve DOHC VTEC™ Engine
Torque-Sensing Limited-Slip Differential
Aluminum-Alloy Cylinder Head and
Block w/Fiber-Reinforced (FRM) Cylinder Walls
Multi-Point Programmed Fuel Injection
(PGM-FI)
Forged Aluminum Pistons
Electronic Ignition
6-Speed Manual Transmission
Coaxial Electric Power Rack &
Pinion Steering
Power-Assisted 4-Wheel Disc Brakes
w/ABS
Low Back-Pressure Exhaust System
Low-Emission Vehicle (LEV) Rating
E X T E R I O R F E A T U R
E S Electrically Powered Soft Top
High-Intensity Discharge (HID) Headlights
Lightweight Alloy Wheels

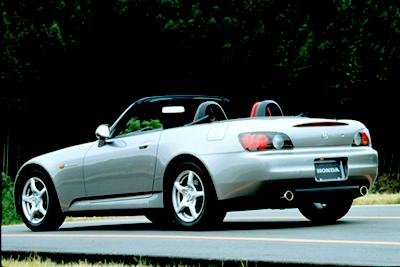

Dual-Outlet Exhaust
Impact-Absorbing Body-Colored Bumpers

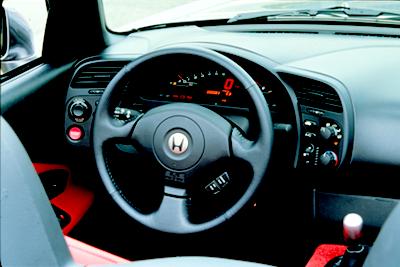

I N T E R I O R F E A T U R
E S Dual Airbags (SRS)
Air Conditioning, Micron Air-Filtration
AM/FM Stereo with CD Player
Power Windows
Cruise Control
Digital Instrument Panel
Leather-Trimmed Seats
Center Console Storage Compartments
w/Lock
Beverage Holder
3-Point Seat Belts
Remote-Operated Audio Controls
Engine Start Button
12-Volt Power Outlet
Immobilizer Theft-Deterrent System
Keyless Entry System
E X T E R I O R C O L O R S
/ Grand Prix White / Red
I N T E R I O R C O L O R
S New Formula Red / Black
Silverstone Metallic / Red or Black
Berlina Black / Red or Black
F U E L E C O N O M Y
EPA Mileage, City/Highway (mpg)
20/26
C A P A C I T I E S
Oil, Engine & Filter (liters)
5.6
Transmission (qt./liters) 1.56/1.48
Cooling System (liters) 7.6
Fuel Tank (gal./liter) 13.2/50
Equipment, colors, models, specifications and availability are subject to change without notice.
